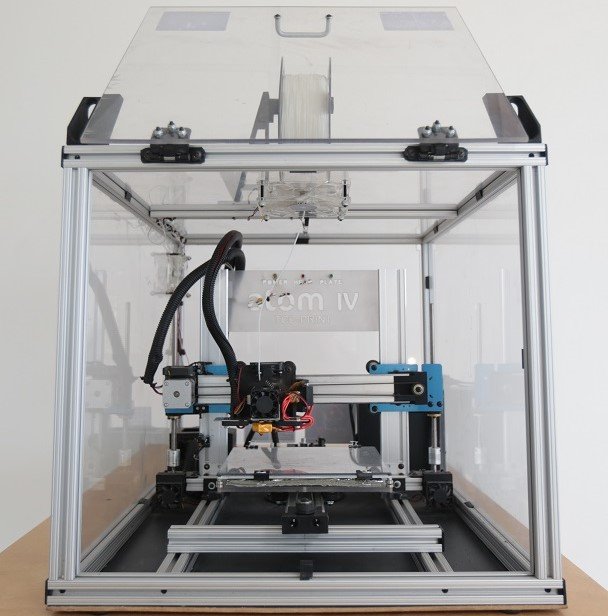

ATOM IV
Specifications | Industrial Desktop Printer
Print Technology: Fused Filament Fabrication.
Build Volume: 200 L x 200 W x 180 H mm.
Resolution: From 400 microns [0.0118in] to 50-25 microns [.0019-.0009in].
Physical Dimensions: 53 x 66 x 49 cm [20.8 x 26 x 19 in].
File Types: .stl, .obj, .amf, .3ds, .gcode.
Input AC: 100 – 240 V, ~3 A, 60 Hz | Stand By: 30.5 Watts
Heat bed ON: 245 Watts | Full Operating: 250-296 Watts.
Build Materials: Aluminium and thermoplastic polymer sheet.
Other Features: Initial Setup and Training (Use, Control, Maintenance, Best
Practices)
Mountable Platform for Interchangeable Extruder System | 1 year warranty.
ATOM IV All Specs and Features.

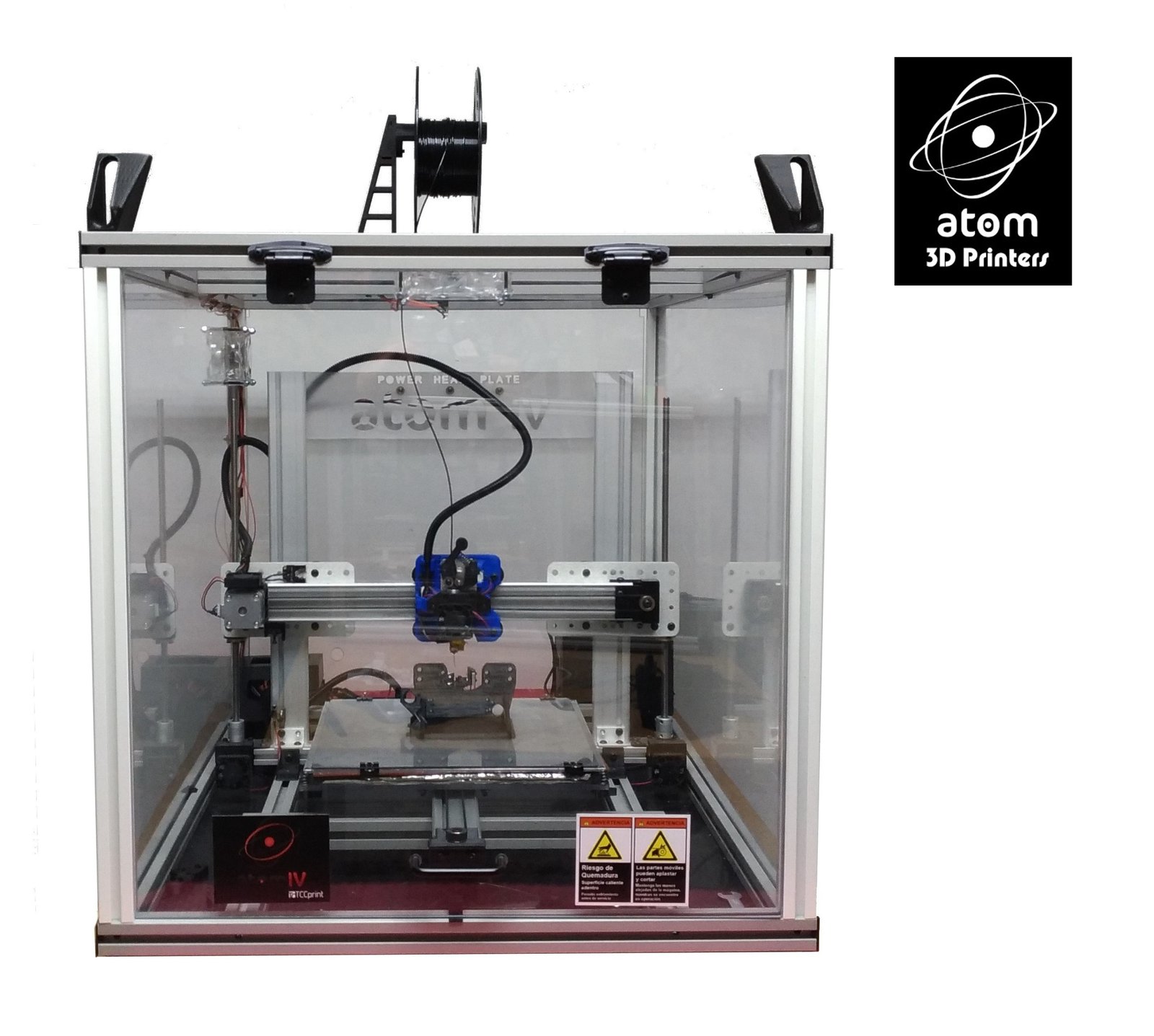

ATOM IV+
Specifications | Industrial Desktop Printer
Print Technology: Fused Filament Fabrication.
Build Volume: 300 L x 300 W x 300 H mm.
Resolution: From 400 microns [0.0118] to 50-25 microns [.0019-.0009in].
Physical Dimensions: 65 x 88 x 64 cm [25.3 x 34.3 x 25 in].
Weight: 37Kg [82lbs].
Input AC: 100 – 240 V, ~3 A, 60 Hz | Stand By: 30.5 Watts
Heat Bed On: 245 Watts | Full Operating: 250-296 Watts
Build Materials: Aluminiun and Thermoplastic Polymer Sheet.
Other Features: 7" Toutchscreen user interface
Initial Setup and Training (Use, Control, Maintenance, Best Practices) | 1 year warranty
Full Specs and Features ATOM IV+.

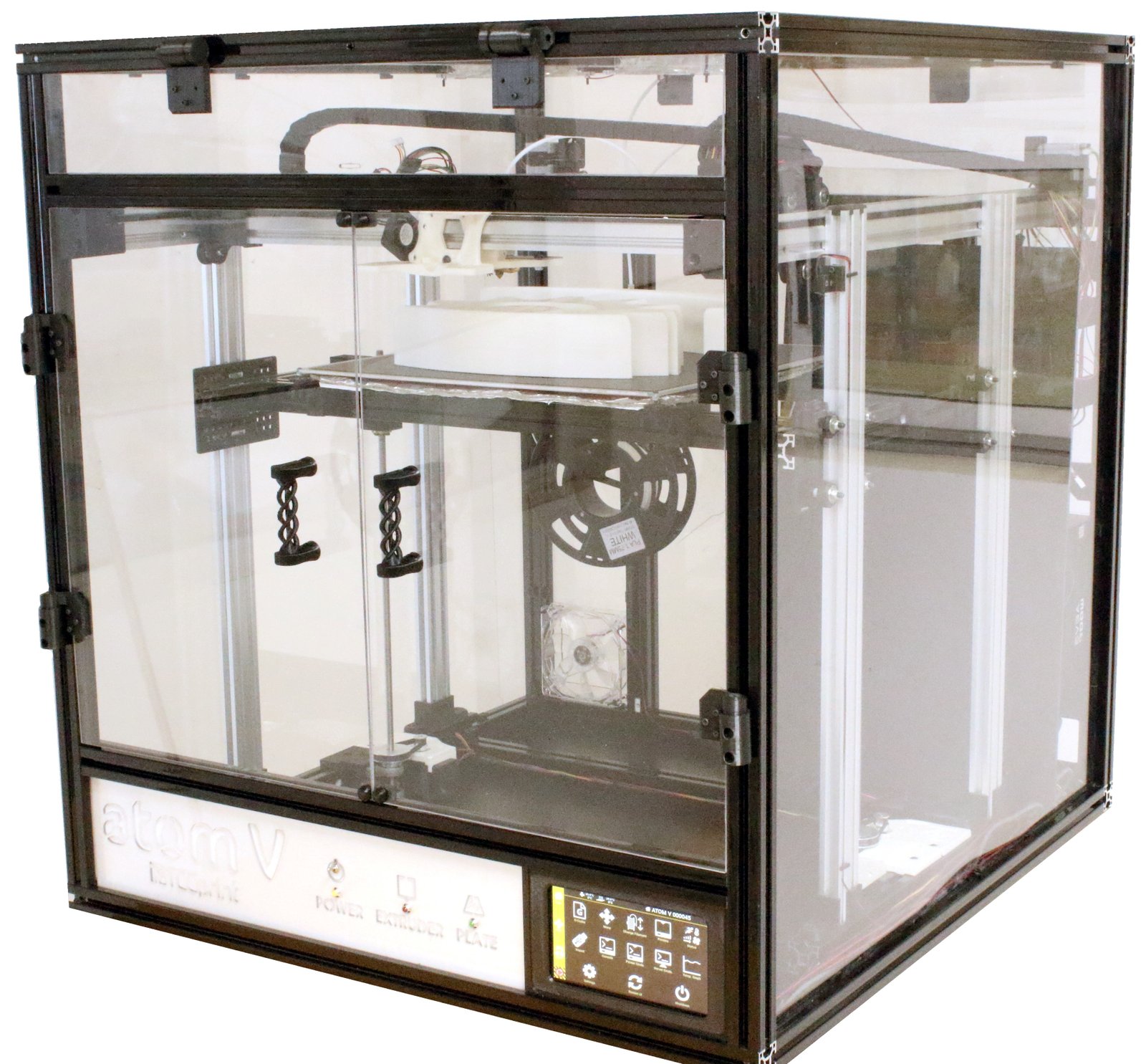

ATOM V
Specifications | Industrial Desktop Printer
Print Technology: Fused Filament Fabrication.
Build Volume: 400 L x 400 W x 400 H mm.
Resolution: From 400 microns [0.0118] to 50-25 microns [.0019-.0009in].
Physicar Dimensions: 80 x 86 x 87 cm [31.4 x 33.85 x 34.2 in].
File Types: .stl, .obj, .amf, .3ds, .gcode.
Input AC: 100 – 140 V (220 Optional), ~5 A, 60 Hz | Stand By: 33 Watts
Heat Bed ON: 630 Watts | Full Operating: 110-680 Watts.
Build Materials: Aluminium and Thermoplastic Polymer Sheet.
Other Features: 7" Toutchscreen User Interface
Initial Setup and Training (Use, Control, Maintenance, Best Practices) | 1 year warranty.
Full Specs and Features ATOM V.

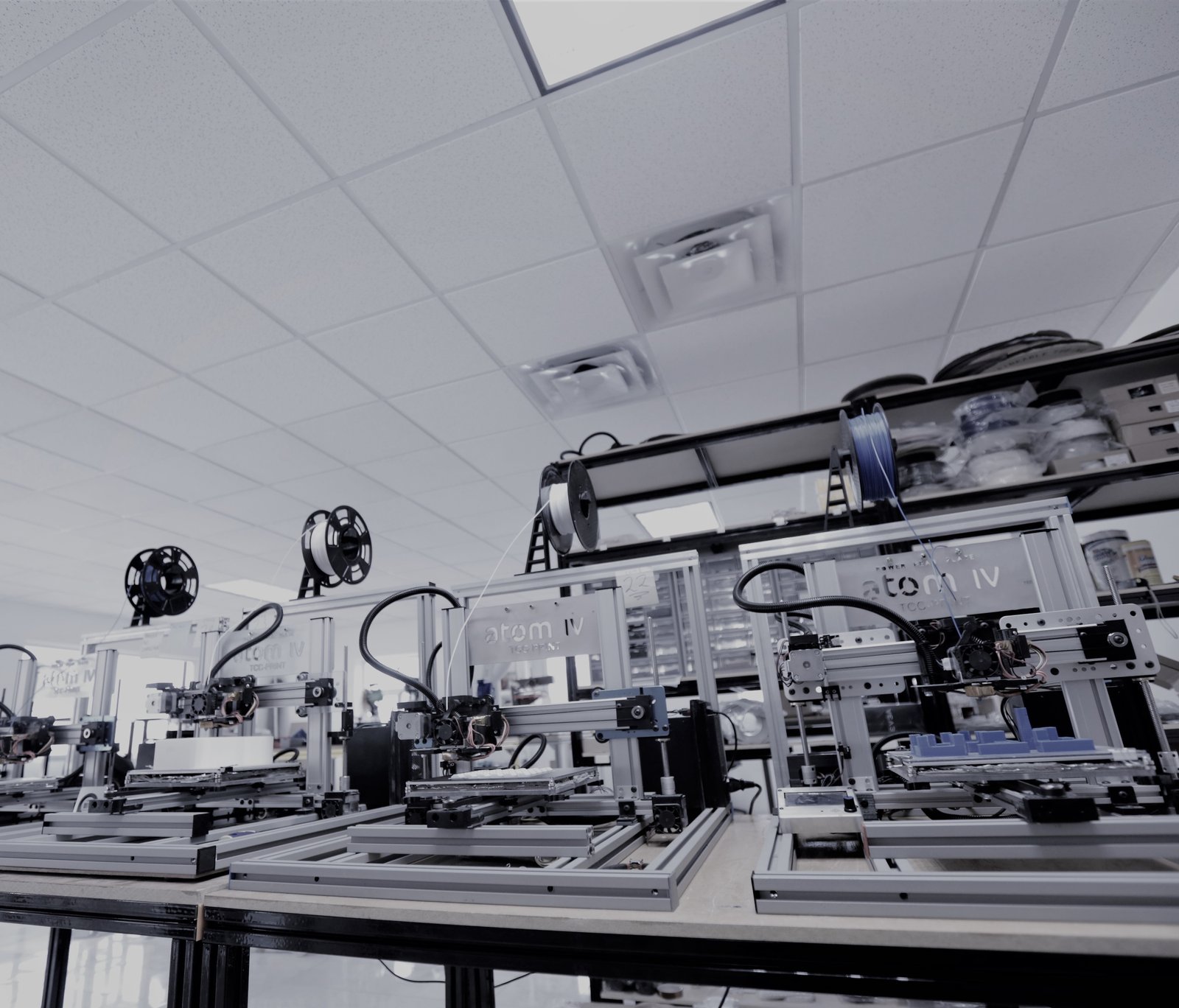

Farms
Control System
Atom 3D server.
Operating Systems Supported: Windows (XP 32 bit/7+) Ubuntu Linux (12.04+) Mac OS X (10.6 64 bit/10.7+), iOS, Android.
Industrial all-in-one system to control and manage 3d printers and prints, including printer and prints statics, print duration, weight, ETA, ETE, price and cost calculations and print reports.
Rescue System for Power Failure (Based on each printer capability).
Designed for printing centers and professional farm centers.
Internet and Intranet web interface to access and control 3D printers.
Initial Setup and Training (Use, Control, Best Practices).
Main Controller: 1.4 GHz ARM quad core CPU | 1 GB RAM | 2.5 A Power supply with noise filter | 2 Heat dissipation heat sinks | 2.4Ghz / 5Ghz ac wireless.
System Full Specs and Features.

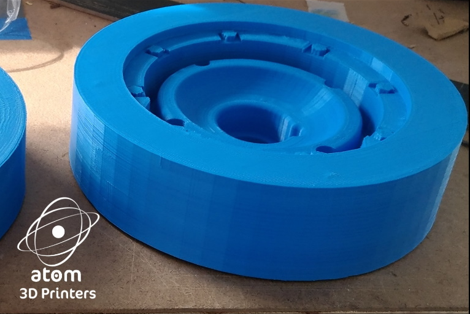

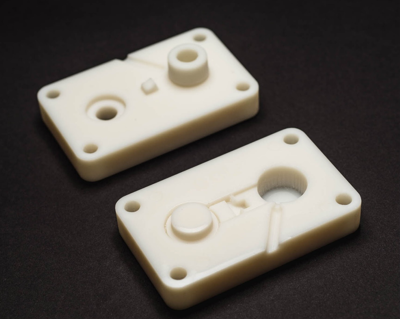

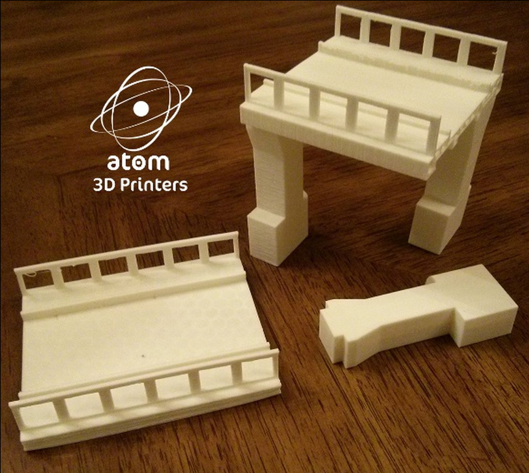

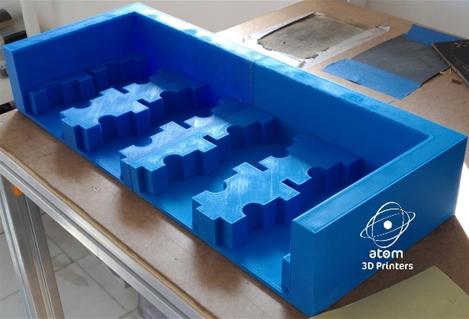

Manufacturing
- Machines and mechanisms
- Automated Machinery Parts
- Guards and Covers

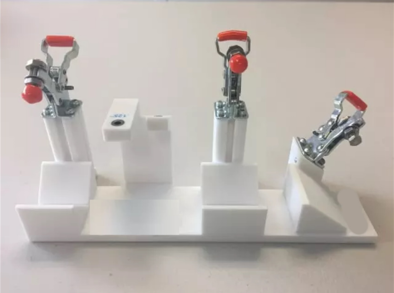

- Fixtures
- Patterns
- Jigs
- Spare Parts
- Functional Parts
- Medical Parts
- Signs and Adverstisements
- Production Process Parts
- Customized Parts and Products
